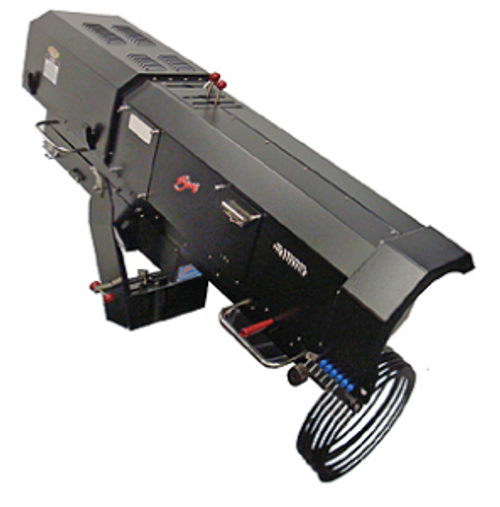

Osram replacement lamp XBO 3000W/H XL $895.00 Each Fits Strong Gladiator III.
| Product Information | |
|---|---|
| Model | XBO3000WHXLOFR |
| Application | Cinema Film Projection Strong Gladiator III |
| Magnetic Arc Stabilization | Required |
| Average Luminance (cd/cm2) | 85000 |
| Base | Special Double Ended |
| Base Anode | SFaX27-13 |
| Base Cathode | SFa27-14 |
| Warranty Hours | 2200 |
| Bulb | KO158 |
| Class | C (gas) |
| Cooling | Required |
| Current (A) | 100 |
| Current Control Range (A) | 60-110 |
| Diameter d (in) | 2.362 |
| Diameter d (mm) | 60.00 |
| Distance a (mm) | 167.5 |
| Electrode Gap (cold) (mm) | 6 |
| Family Brand Name | XBO® |
| Hot Restart | Yes |
| Lamp Finish | Clear |
| Length l1 max. (mm) | 428 |
| Length l2 max. (mm) | 382 |
| Light Center Length - LCL (mm) | 167.5 |
| Luminous Area w x h (mm) | 1.7 x 5.0 |
| Luminous Intensity (cd) | 12000 |
| Maximum Base Temperature °C | 230 |
| Maximum Overall Length - MOL (mm) | 428 |
| Nominal Voltage (V) | 29.00 |
| Nominal Wattage (W) | 3000.00 |
| Operating Position | s30 p30 |
| Reflector Coating | 60.00 |
| Type of Current | DC |
