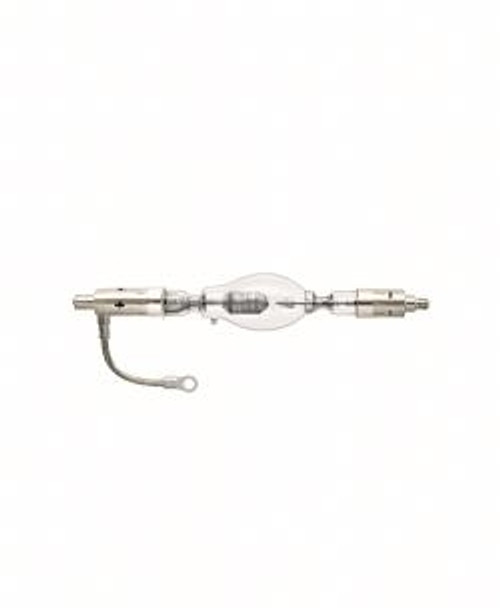

Osram XBO4000W/HPN L OFR 69085 $878.00 Each. For use in NEC Digital Projectors.
| Abbrev. With Packaging Info. | XBO4000WHPNLOFR |
| Application | Digital Cinema Projection |
| Average Luminance (cd/cm2) | 135000 |
| Average Rated Life (hr) | 1000 |
| Base | SFa27-20 + SFaX27-9.5 |
| Base Anode | SFaX27-9.5 |
| Base Cathode | SFa27-20 |
| Warranty Hours | 1000 |
| Bulb | T17 |
| Color Rendering Index (CRI) | 98 |
| Color Temperature (K) | 6000 |
| Current (A) | 120 |
| Current Control Range (A) | 100-130 |
| Diameter d (in) | 2.165 |
| Diameter d (mm) | 55.00 |
| Electrode Gap (cold) (mm) | 6 |
| Family Brand Name | XBO® |
| Hot Restart | YES |
| Length l1 max. (mm) | 345 |
| Length l2 max. (mm) | 308 |
| Light Center Length - LCL (mm) | 144 |
| Luminous Area w x h (mm) | 1.7 x 4.9 |
| Luminous Intensity (cd) | 17500 |
| Maximum Base Temperature °C | 230 |
| Nominal Voltage (V) | 33.00 |
| Nominal Wattage (W) | 4000.00 |
| Operating Position | s70 (vertical +/-70 degrees, anode up); p20 (horiz |
| Reflector Coating | 55.00 |
| Type of Current | DC |
