Ushio UXL-3000FS

$825.00
Write a Review
SKU:
5001064
Condition:
New
Ushio UXL-3000FS
Ushio UXL-3000FS Xenon Short Arc $825.00 Each.

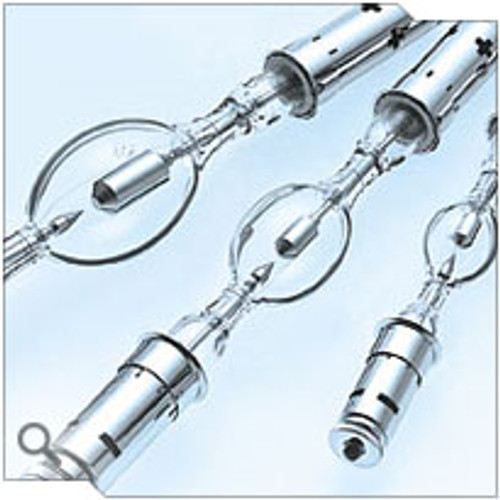

USHIO is one of the largest and most trusted names in the manufacturing of high pressure xenon lamps today. USHIO's UXL series are high pressure, short-arc xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what USHIO has achieved with the UXL lamp design. High Pressure Xenon lamps are used in a variety of applications including searchlights, followspots, and projectors.

These three new xenon lamps from USHIO are specifically designed and approved for use in STRONG high performance followspots. During manufacturing, the quartz tip-off position was moved to the cathode side of the lamp to allow easier installation and a more precise fit into the reflector. The cable on the UXL-3000FS has been lengthened to allow ease of lamp positioning during installation.

  • UXL-2000FS – for Xenon Super Trouper® 83070, 83080
  • UXL-20FS – for Super Trouper II® 24000
  • UXL-3000FS – for Xenon Gladiator III® 47061


Strong Spotlights, Super Trouper®, Super Trouper II®, and Gladiator III® are trade names owned by Ballantyne of Omaha, Inc.


SPECIFICATIONS
Watts
(W)
USHIO
Ordering
Code
USHIO
Lamp
Description
Rated
Amps
Current
Control
Range
(A)
Rated
Voltage
(V)
Forced
Air
Cooling
(m/sec)
Arc
Gap
(mm)
Average
Life
(h)
2000 5001062 UXL-20FS 80 50-85 25 10-13 6.0 2000
2000 5001063 UXL-2000FS 70 50-85 29 10-13 6.0 2000
3000 5001064 UXL-3000FS 100 60-100 30 10-13 7.0 1200
